Friday, April 26, 2013

HTC Droid Incredible LCD Screen Repair

My HTC Droid Incredible, or as connoisseurs cal it, Dinc, was a piece of a phone dead as a door nail:

That is, a beautiful AMOLED LCD on this Dinc is cracked. Phone itself vibrated and lighted its buttons -- after I charged the battery. With $26.59 LCD screen replacement purchase 5 days later I'm ready to tackle the repair. There's plenty of more or less detailed instruction videos available, as Dinc was one of the most popular phone in its time. Watching these gives you some ideas.
Dincs use two types of LCD screens, mine was AMOLED, so the replacement screen above was matched. Note the magic blue sheen. Repair set from eBay included a torx screwdriver and a prying tool. And another torx driver, instead of claimed Phillips one. Oh well.
Next step was the most interesting one: pulling out the LCD screen's ribbon cable ended in me damaging it. Thank God it was a ribbon from the cracked screen.

Contrary to what videos tell you, the LCD panel can be replaced with couple ribbons sitting still in their connectors. But I pulled them all out anyway: a good picture of Dinc's internals is rare these days.

Assembly went without a hitch except for I didn't notice the tab on optical trackpad connector remained up (not flattened), like it was originally:
Pieces of yellow film should be put back, espevially one with a black gum strip.

 So, trackpad didn't work at the first attempt: tab was up. After the culprit was found and tab was flattened, everything started to work like a charm:

Extra $15 could buy me a new glass/digitizer, as my original Dinc shows some tiny dings. But for a $10 I spent originally on this dead phone it would be an overkill.

Next step: unlocking, rooting, flashing Jelly Bean. It's a pity there's no "official" Cyanogen Mod 10.1 project for HTC Droid Incredible and no 3.0.x kernel for it. The phone running stock Android  2.3.4 is relatively fast and smooth, and the reason going for Jelly Bean is adding better HWA in video decoding/rendering, better camera (8 MPix stock cam is probably the worst among other 8 megapixels), plus some of that JB "butter". Android 4.2.2 ROMs available are all work in progress in these respects. Or is there a good ROM?
Enhanced by Zemanta

Thursday, April 25, 2013

LG Optimus G Pro: One More "Fassy" Phone


This article on LG Optimus G Pro phablet is basically an update, or addition to my multi-sided comparison of current flagship phoblets and phablets. I was an avid proponent of phoblets/phablets since 2011 when there were none, and I still am: next "big thing" in phones will be bezel-less 6.1"...6.3" "full HD" phablet with SAMOLED or IGZA screen powered by the next Intel Atom chip.
You can check my posts of 2011 for what I said on phoblets and Tabletology in http://fineoils.blogspot.com archives of 2011....2012.

I missed LG Optimus G Pro phablet in my recent comparison called "ZTE Geek" or something. If this LG Optimus G Pro could be included with a decent price, there will be no ZTE whatever as a contender among flagships:










In specs, LG Optimus G Pro is this:


Detailed Technical Datasheet of LG E980 Optimus G Pro

Brand:LG
Browse LG devices
Manufacturer:LG Electronics
Browse all devices manufactured by LG Electronics
Hardware;Designer:LG Electronics
Expected+Release_Date:May, 2013

Physical_Attributes

Software_Environment

Embedded-Operating;System:Google Android 4.2
Browse devices running this OS
Operating+System;Kernel:Linux

Microprocessor,;Chipset

CPU:Clock:1700 MHz
CPU:Qualcomm Snapdragon 600 APQ8064T
Browse devices based on Snapdragon 600 APQ8064T
Width:of;Machine;Word:32 bit
CPU+Core:4x Qualcomm Krait 300
Level;1-cache:16KiB data cache / 16 KiB instruction cache
Level;2-cache:2048 KiB
Instruction:Set:ARMv7

Memory,;Storage;capacity

RAM-type:LPDDR2 SDRAM
RAM+capacity:2048 MiB
ROM+type:Flash EEPROM

Graphical;subsystem

Display+Type:color IPS TFT display
Display_Color;Depth:24 bit/pixel (16777216 scales)
Display-Diagonal:5.5 " (140 millimetres)
Display_Resolution:1080 x 1920 (2073600 pixels)
Viewable-Display-Size:2.7 " x 4.8 " (68.64 x 122.02 millimetres)
Pixel;density;(dot:pitch):399.7 pixel/inch (0.06355 millimetre/pixel)
Graphical+Controller:Qualcomm Adreno 320
Video-out:1920x1080 (1080p) FHD resolution
USB Series Micro-B (Micro-USB) with MHL connector

Audio:Subsystem

Audio:Channel(s):stereo sound
Analog/Digital Converter
(Recording):
24 bit nominal quantization
48000 Hz sampling frequency
Digital/Analog Converter
(Playing):
24 bit resolution
48000 Hz holding frequency
Microphone(s):stereo sound
Loudspeaker(s):mono sound
Audio+Output:3.5mm plug

Cellular:Phone

Cellular;Networks:GSM850, GSM900, GSM1800, GSM1900, UMTS850 (B5), UMTS900 (B8), UMTS1900 (B2), UMTS2100 (B1)
Cellular:Data;Links:GPRS, EDGE, UMTS, HSDPA, HSUPA, HSPA+
Cellular;Antenna:Internal antenna
Call-Alert:72 -chord melody (polyphonic)
Vibrating+Alert:Supported
Speakerphone-:Supported
Phone+Controller:Qualcomm MDM9215M

Secondary:Cellular+Phone

Dual;Cellular_Network_Operation:Selectable cellular module
Secondary:Cellular+Networks:LTE700 (B17), LTE850 (B5), LTE1700/2100 (B4), LTE1900 (B2)
Secondary_Cellular_Data;Links:LTE
Secondary:Cellular-Antenna:Internal antenna
Secondary+Phone-Controller:Qualcomm MDM9215M

Control+Peripherals

Positioning:Device:Multi-touch screen
Primary_Keyboard:Not supported
Directional_Pad:Not supported
Scroll_Wheel:Not supported

Interfaces

Expansion+Interfaces:microSD, microSDHC, TransFlash, microSDXC
Supports High Capacity (SD 2.0/HC) memory cards with capacity of up to 32GB
USB:USB 2.0 host/client, Hi-Speed (480Mbit/s), USB On-The-Go 1.3 compliant
USB Series Micro-B (Micro-USB) connector
Bluetooth+(802.15):Bluetooth 4.0, Internal antenna
Wireless_LAN/Wi-Fi+(802.11):IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Internal antenna
Infrared;Gate:Supported

Multimedia_Broadcast

Analog;Radio:Not supported
Digital-Media;Broadcast:Not supported

Satellite:Navigation

Built-in:GPS:module:Supported
GPS:Protocol:NMEA 0183
GPS+Antenna:Internal antenna
Complementary;GPS_Services:Assisted GPS, QuickGPS, Geotagging, Simultaneous GPS
Navigation_Chip(set):Qualcomm APQ8064T gpsOne

Power-Supply

Battery_Technology:Lithium-ion polymer battery
Battery;Build:removable
Battery:Capacity:3140 mAh

Additional:Details

Built-in-accelerometer:Supported
Additional_Features:
  • capacitive touchscreen
  • 2.5D curved glass screen
  • GPRS Class 12
  • HSPA+ 21Mbps
  • HSUPA 5.76
  • LTE 100/50Mbps
  • Tactile Feedback
  • Bluetooth stereo audio profile (A2DP
  • AVRCP)
  • NFC
  • DLNA
  • 3G/4G Mobile hotspot
  • proximity sensor
  • light sensor
  • gyro sensor
  • HT40
  • micro-SIM
Related+Page:http://www.att.com
Datasheet:State:Preliminary specifications
Datasheet-Views:2021 times
Datasheet:Added:Mar 26, 13 23:31:12


Whatever Motorola X/Google Nexus 5 would turn out, it would have a hard time to beat this device: smaller 1080p screen just doesn't cut it, no SD slot is always fail no matter what. As it stands now, G Pro's real contender may be revealed only in Samsung Galaxy Note III (powered by Samusung Exynos Octa?).

However, LG Optimus G Pro and all contemporary phablets follow pretty bad design philosophy: scaling up a very flawed and fragile case. IMHO, every 5+ inch phablet should have bumper (gel) case as a default.

In other news, Apple's Tim Cook's lack of desire to launch next iPhone in 5+ inch phablet format may bring about his retirement sooner than later.






Wednesday, April 24, 2013

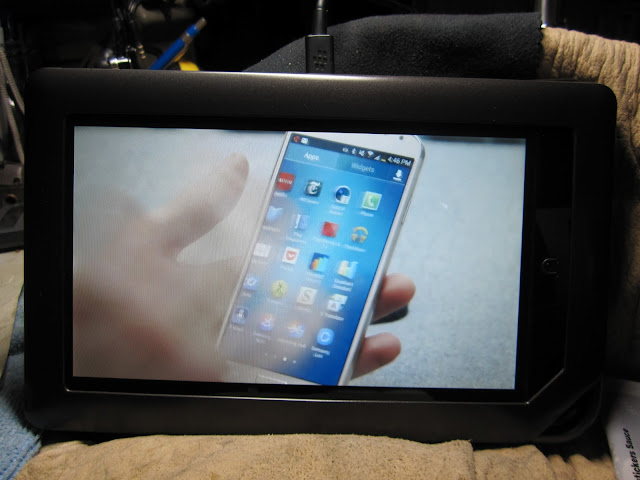

Nook Color CM 10.1 Official Nightlies



Nook Color continues to be nostalgically loved by Cyanogen Mod developers. First, there were unofficial builds by fattire and Co. that can be still found at XDA Devs forum. These were quite stable builds, if only with crooked boot animation. Important to note also that the unofficial CM 10.1 development continues.

Now, these builds are accepted and merged into an "official" CM 10.1 tree. You can pick a latest nightly here, and check the changelog here. As always, changes specific to "Encore" (Nook Color) are rare, but you can be sure that so called "upstream" improvements of general, non-specific CM 10.1 code will filter through and "downstream" to this veteran Nookie.

Everything that worked on an "unofficial" Betas of CM 10.1 for Nook Color works on this Nightly of 24 April 2013 just fine. It might be a placebo effect, but UI transitions seem smoother.

As for inherited bugs, audio volume needs Equalizer plus SpeakerBoost still, but I'm sure stuff like System Tuner won't be needed soon.





Enhanced by Zemanta

Saturday, April 20, 2013

ZTE Geek Phone

In Europe, they manufacture some enthusiast devices they call Geekphones. Unless these run Firefox OS and/or Ubuntu OS, there's not much to be enthused about. Geek Phone by ZTE is quite a different animal.


If you think of the top of the line phone for this season, it might be not the highly touted Samsung Galaxy SIV (or S4). And it's not that ASUS Padfone Infinity which is driven by the same Qualcomm's Snapdragon S600 as some of the SGS4s. Well, it's not even HTC One.

That is, if you base your choice on performance:


Engadget presenter didn't find the time or desire to present anything though about this ZTE Geek champion:



Mobileggeeks' Nicole couldn't add anything to that either:


So, the phone remains to be seen and reviewed yet. However, sompe specs are known already:

Phonearena puts them this way:

    • Smart phone
  • OS:
    • Android (4.2.2)

DISPLAY

  • Physical size:
    • 5.0 inches
  • Resolution:
    • 720 x 1280 pixels
  • Pixel density:
    • 294 ppi
  • Colors:
    • 16 777 216
  • Touchscreen:
      • Capacitive, Multi-touch
  • Features:
    • Light sensor, Proximity sensor, Scratch-resistant glass

BATTERY

  • Capacity:
    • 2300 mAh

HARDWARE

  • System chip:
    • Intel Atom Z2580
  • Processor:
    • Dual core, 2000 MHz, Clover Trail+ (it's 933 MHz....1.3 GHz actually. 2 GHz is a peak in Turbo mode)
  • Graphics processor:
      • PowerVR SGX 544 MP2
  • System memory:
    • 1024 MB RAM (LPDDR2)
  • Built-in storage:
    • 8 GB
  • Storage expansion:
    • microSD, microSDHC up to 32 GB

CAMERA

  • Camera:
      • 8 megapixels
    • Flash:
      • LED
  • Camcorder:
      • Yes
  • Front-facing camera:
      • 1.2 megapixels

MULTIMEDIA

  • Music player:
    • Filter by:
      • Album, Artist, Playlists
    • Features:
      • Album art cover, Background playback
  • Speakers:
    • Earpiece, Loudspeaker
  • YouTube player:
    • Yes

INTERNET BROWSING

  • Browser:
      • Yes
  • Built-in online services support:
    • YouTube (upload), Picasa

TECHNOLOGY

  • GSM:
    • 900, 1800, 1900 MHz
  • UMTS:
    • 900, 2100 MHz
  • Positioning:
    • GPS, A-GPS
  • Navigation:
    • Turn-by-turn navigation

PHONE FEATURES

  • Phonebook:
    • Unlimited entries, Caller groups, Multiple numbers per contact, Search by both first and last name, Picture ID, Ring ID
  • Organizer:
    • Calendar, Alarm, Document viewer, Calculator
  • Messaging:
    • SMS, MMS, Threaded view, Predictive text input
  • E-mail:
      • IMAP, POP3, SMTP, Microsoft Exchange

CONNECTIVITY

  • Bluetooth:
      • 4.0
  • Wi-Fi:
      • 802.11 a, b, g, n
  • USB:
      • USB 2.0
    • Connector:
      • microUSB
    • Features:
      • Mass storage device, USB charging
  • Other:
    • Tethering, Computer sync, OTA sync

OTHER FEATURES

  • Notifications:
    • Haptic feedback, Music ringtones (MP3), Polyphonic ringtones, Vibration, Flight mode, Silent mode, Speakerphone
  • Sensors:
      • Accelerometer, Compass
    • Voice dialing, Voice commands, Voice recording

AVAILABILITY

  • Officially announced:
    • 10 Apr 2013
  • Scheduled release:
    • Q2 2013


My additions are in blue. Better detailed and usually more precise specs are published by PDADB.net:

Detailed Technical Datasheet of ZTE Geek

Brand:ZTE
Browse ZTE devices
Manufacturer:Zhong Xing Telecommunication Equipment
Browse all devices manufactured by Zhong Xing Telecommunication Equipment
Hardware;Designer:Zhong Xing Telecommunication Equipment
Expected;Release:Date:May, 2013

Physical-Attributes

Software-Environment

Embedded-Operating:System:Google Android 4.2.2
Browse devices running this OS
Operating+System+Kernel:Linux 3.4.21

Microprocessor,_Chipset

CPU;Clock:2000 MHz
CPU:Intel Atom Z2580
Browse devices based on Atom Z2580
Width_of+Machine_Word:32 bit
CPU-Core:2x Intel Atom
Level+1-cache:24KiB data cache / 32 KiB instruction cache
Level;2:cache:512 KiB
Instruction:Set:IA-32 (x86), MMX, SSE, SSE2, SSE3

Memory,;Storage;capacity

RAM_type:LPDDR2 SDRAM
RAM;capacity:1024 MiB
ROM;type:Flash EEPROM
ROM:capacity:7629 MiB
ROM;capacity+in_bytes:8 GB (billion bytes)

Graphical;subsystem

Display+Type:Supported
Display:Color-Depth:24 bit/pixel (16777216 scales)
Display+Diagonal:5 " (127 millimetres)
Display-Resolution:720 x 1280 (921600 pixels)
Viewable:Display-Size:2.45 " x 4.36 " (62.26 x 110.69 millimetres)
Pixel_density:(dot-pitch):293.7 pixel/inch (0.08648 millimetre/pixel)
Graphical;Controller:PowerVR SXG544MP2

Audio;Subsystem

Audio:Channel(s):stereo sound
Microphone(s):stereo sound
Loudspeaker(s):mono sound
Audio;Output:3.5mm plug

Cellular+Phone

Cellular_Networks:GSM900, GSM1800, GSM1900, UMTS900 (B8), UMTS2100 (B1)
Cellular:Data;Links:GPRS, EDGE, UMTS, HSDPA, HSUPA
Cellular+Antenna:Internal antenna
Call:Alert:64 -chord melody (polyphonic)
Vibrating;Alert:Supported
Speakerphone::Supported
Phone;Controller:Intel XMM 6260

Control:Peripherals

Positioning-Device:Multi-touch screen
Primary_Keyboard:Not supported
Directional:Pad:Not supported
Scroll+Wheel:Not supported

Interfaces

Expansion-Interfaces:microSD, microSDHC, TransFlash
Supports High Capacity (SD 2.0/HC) memory cards with capacity of up to 32GB
USB:USB 2.0 client, Hi-Speed (480Mbit/s)
USB Series Micro-B (Micro-USB) connector
Bluetooth+(802.15):Bluetooth 4.0, Internal antenna
Wireless;LAN/Wi-Fi-(802.11):IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Internal antenna
Infrared:Gate:Not supported

Multimedia+Broadcast

Analog-Radio:FM radio (76-108MHz) with RDS radio reciever
Proprietary headset as antenna
Digital-Media+Broadcast:Not supported

Satellite:Navigation

Built-in:GPS+module:Supported
GPS-Protocol:NMEA 0183
GPS-Antenna:Internal antenna
Complementary;GPS_Services:Assisted GPS, QuickGPS, Geotagging

Built-in_Digital:Camera

Sensor;Type:CMOS sensor
Resolution:3264 x2448 pixels (7.99MP)
Autofocus+(AF):Supported
Optical-Zoom:1 x
Macro:Mode:No information
Built-in+Flash:mobile light (LED)
Camcorder:1920x1080 pixels , 30frame/sec
Recordable+Image;Formats:JPG
Recordable;Video+Formats:3GP, 3G2, MPEG4

Built-in+Secondary:Digital:Camera

Sensor_Type:CMOS sensor
Resolution:1280 x720 pixels (0.92MP)
Camcorder:1280x720pixels
Recordable-Image:Formats:JPG
Recordable+Video:Formats:3GP

Power:Supply

Battery+Technology:Lithium-ion battery
Battery-Build:built-in
Battery-Capacity:2300 mAh

Additional_Details

Built-in-accelerometer:Supported
Additional-Features:
  • capacitive touchscreen
  • Corning Gorilla Class
  • built-in digital compass
  • HSUPA 5.76Mbps
  • Bluetooth stereo audio profile (A2DP
  • AVRCP)
  • DLNA
  • HT40
  • WiFi direct
  • WiFi Mobile hotspot
  • touch focus
  • face detection
  • light sensor
  • proximity sensor
  • gyro sensor
Datasheet_State:Incomplete specifications
Datasheet:Views:987 times
Datasheet:Added:Apr 11, 13 0:39:38


In any case, this ZTE Geek lacks just 1920x1080 screen (it has 1280x720) and extra 1 GB of RAM when compared to the "big" guys. But you can bet it will be priced $150...$200 less than those Samsung, HTC, and ASUS flagships.

Of course, if you plan to burn top dollar for top phone, then there's nothing beats Lenovo IdeaPhone K900.  But that's a different story altogether, and it's not your "cheapo" ZTE:


Motorola X phone and Nexus 5 remain in their thick clouds of fog as per yet, so noone knows whether they will happen to be geekier.


Enhanced by Zemanta
